Basic Parameters:

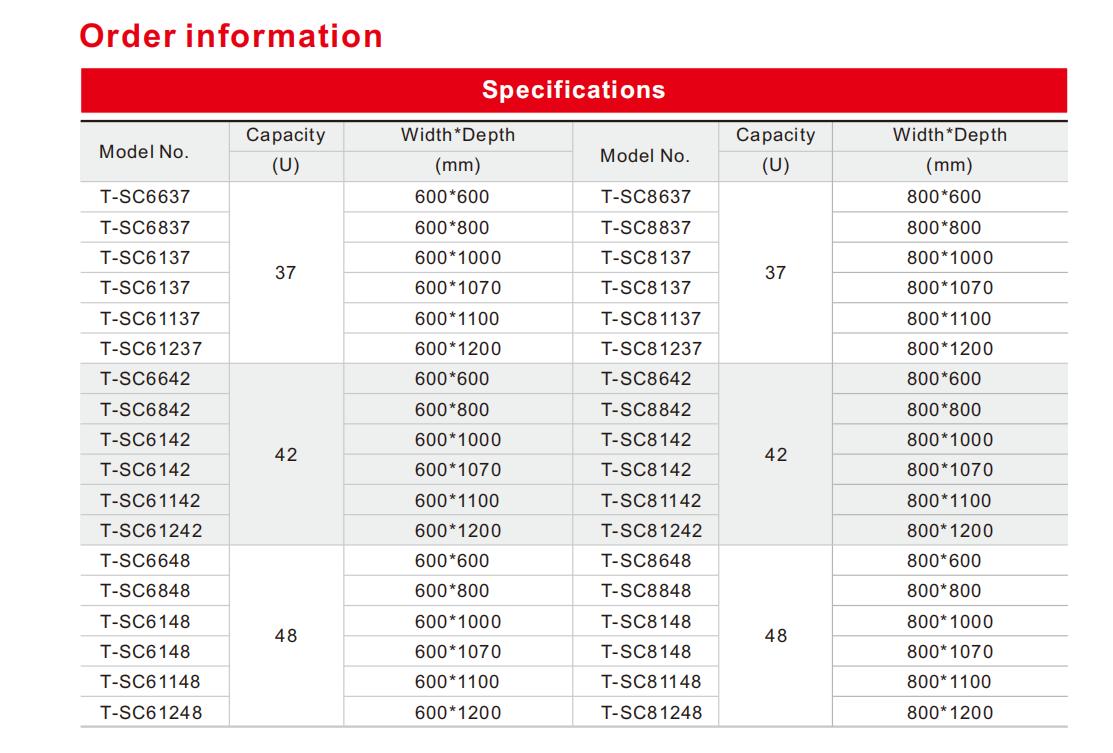

| Height | 32U / 37U /42U / 48U/ 52U |
| Depth | 600/800 / 1000 / 1070/1100 / 1200 （mm） |
| Width | 600 / 800/750 (mm） |

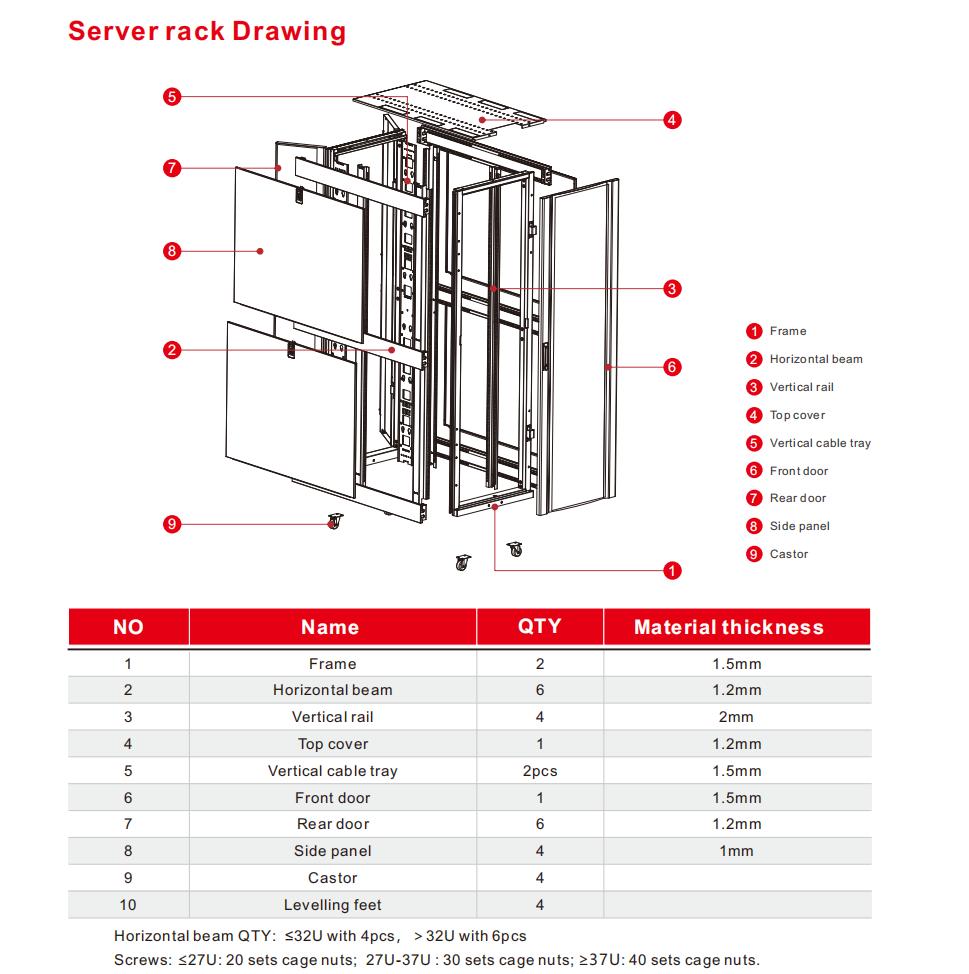

| Actual Thickness（mm) | Before Coating |
| Front and rear frame | 1.5mm |
| Cross beam | 1.2mm |
| Mounting profile (Support) | 2mm |
| Cable tray | 1.5mm |
| Top cover | 1.2mm |
| Front Door | 1.5mm |
| Rear door | 1.2mm |
| Side door | 1mm |

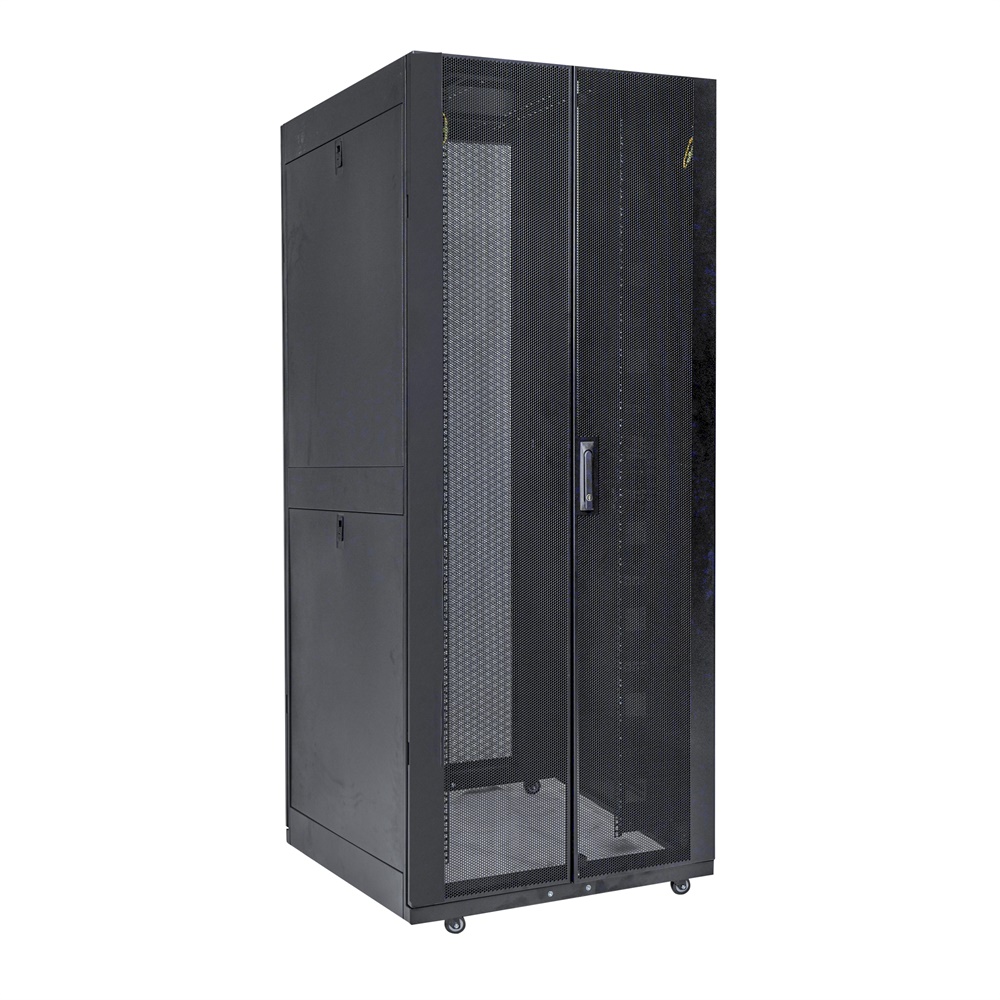

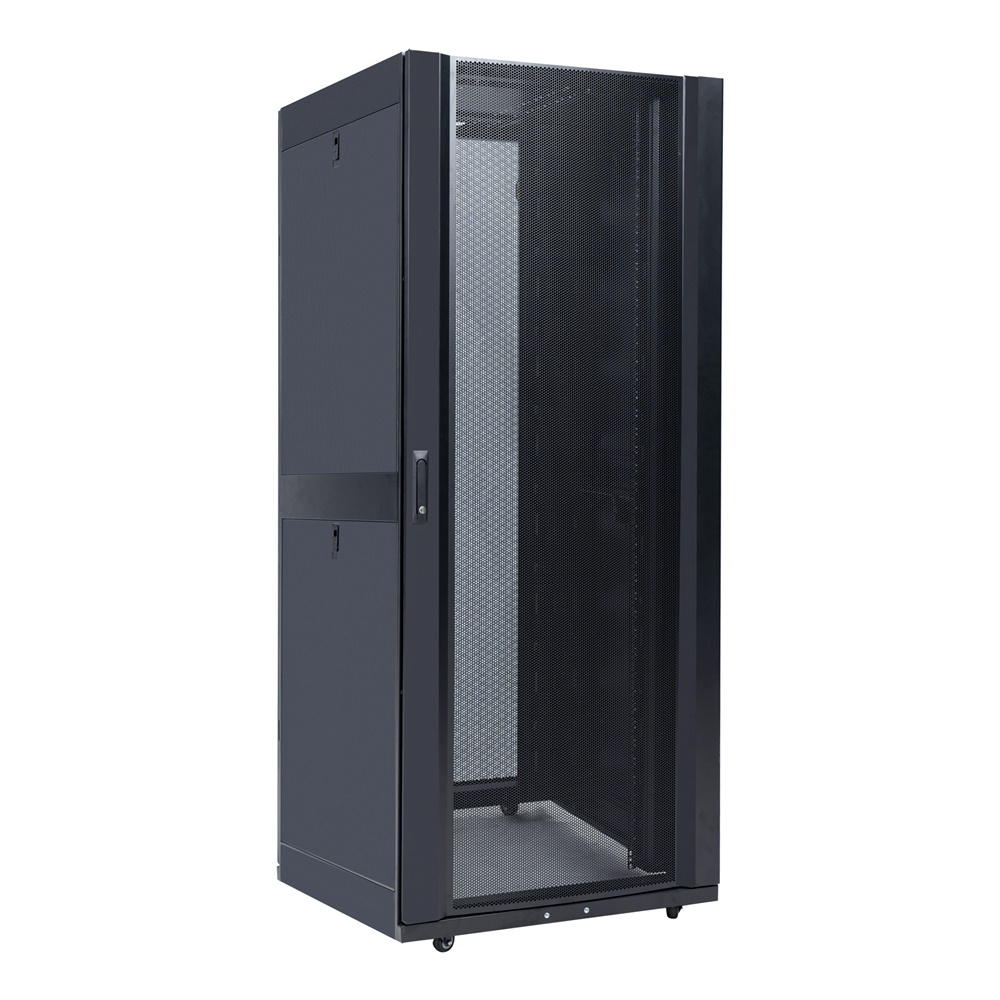

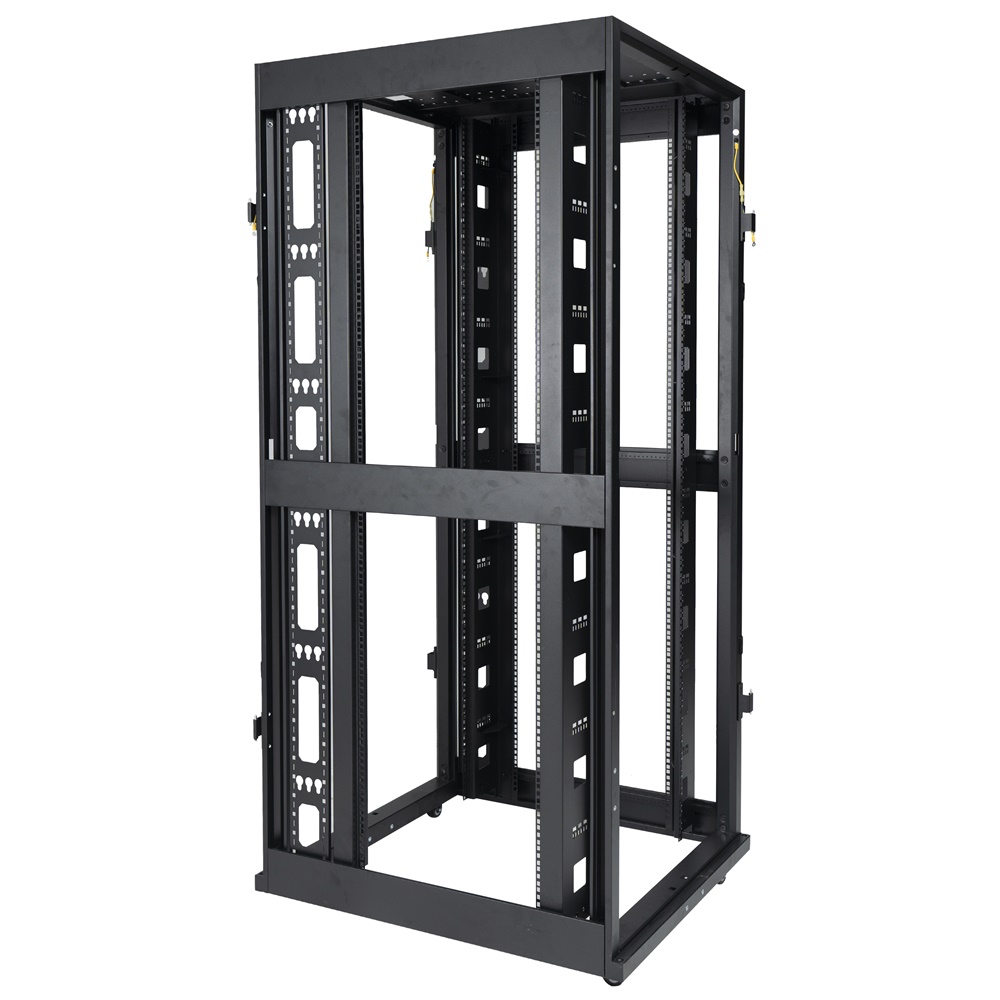

19" 42U Server Rack Enclosure 800 x 1000mm IT Cabinet 1500KG Loading capacity
Feature

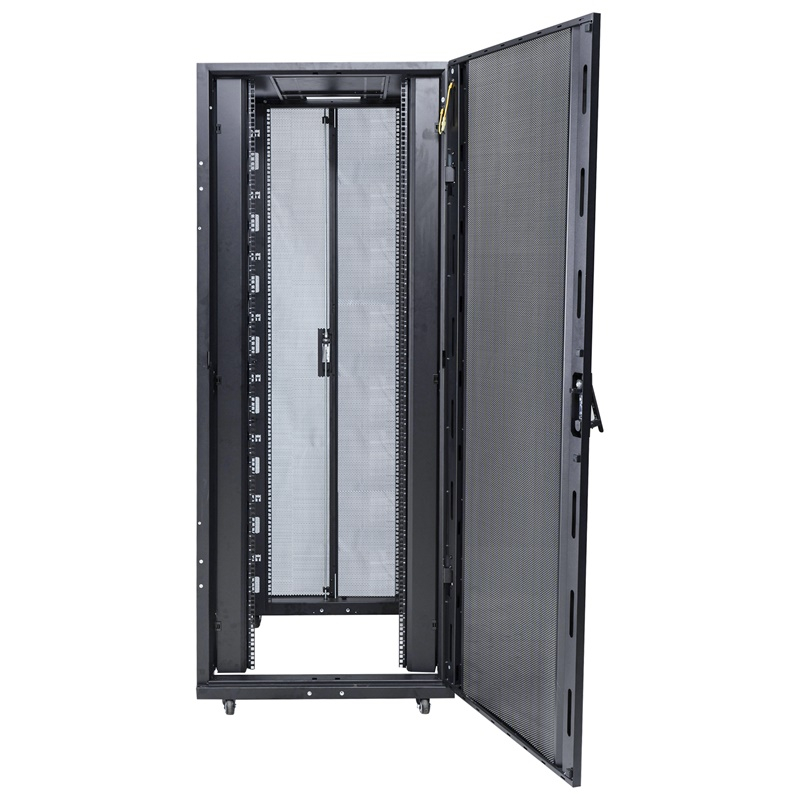

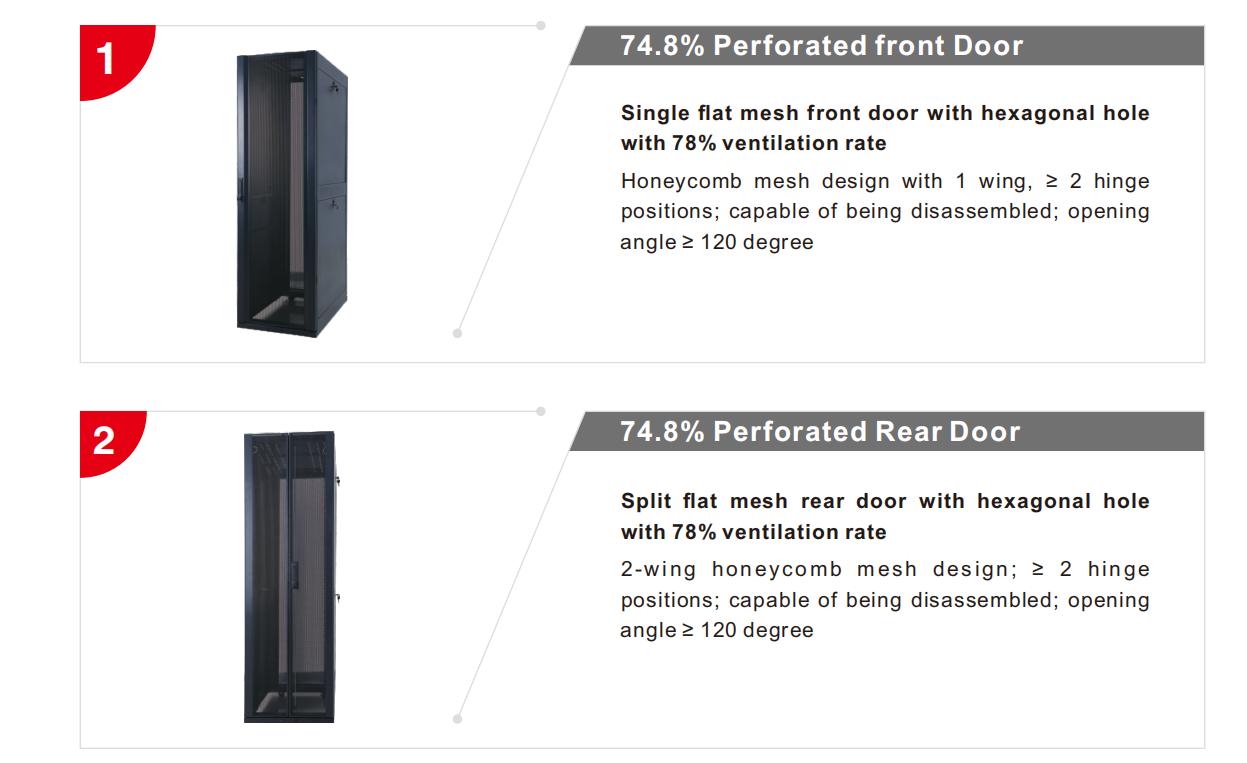

1. Single flat mesh front door with hexagonal hole with 78% ventilation rate

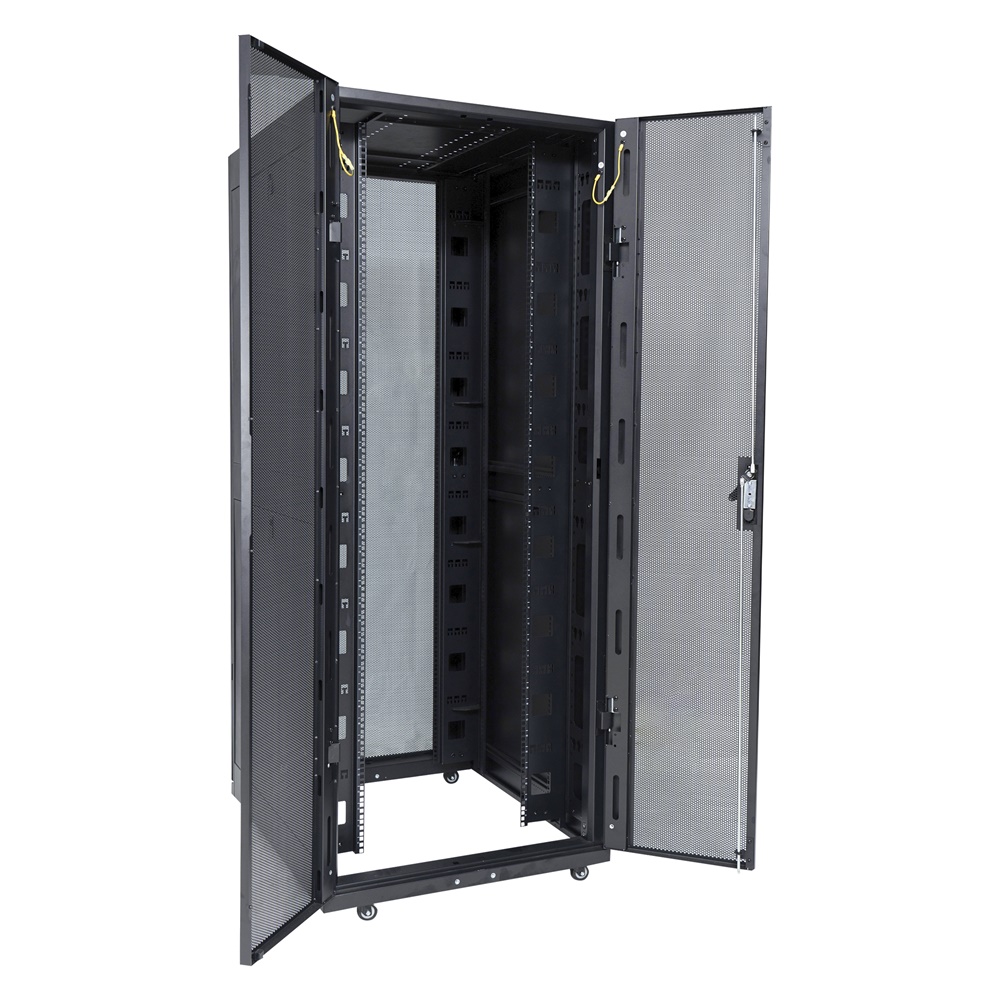

2. Split flat mesh rear door with hexagonal hole with 78% ventilation rate

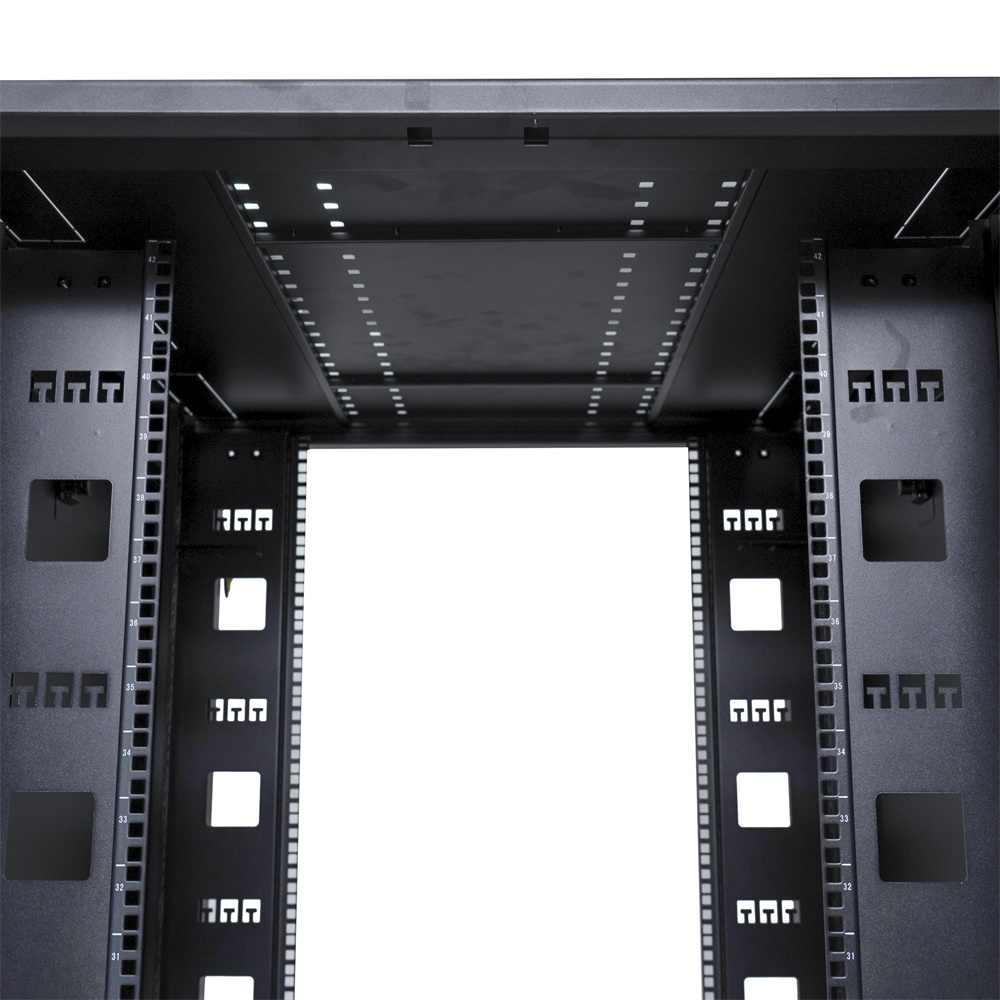

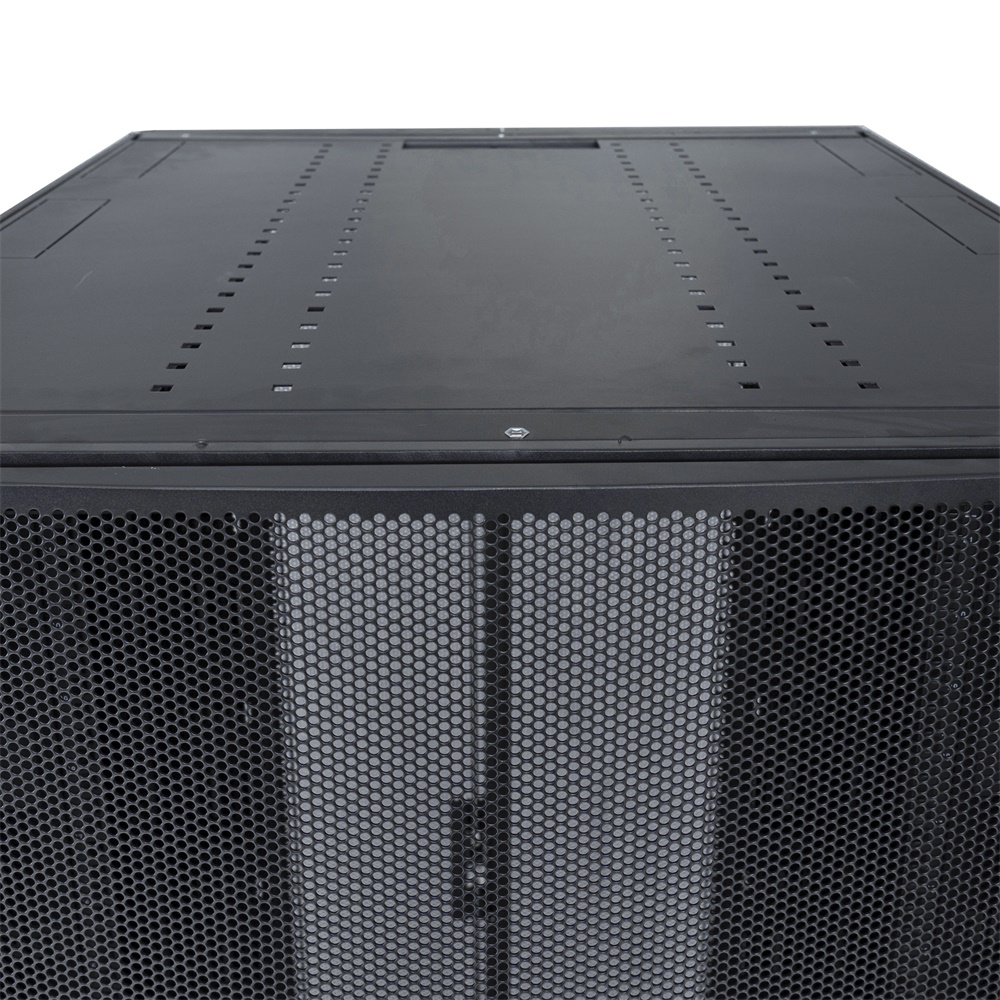

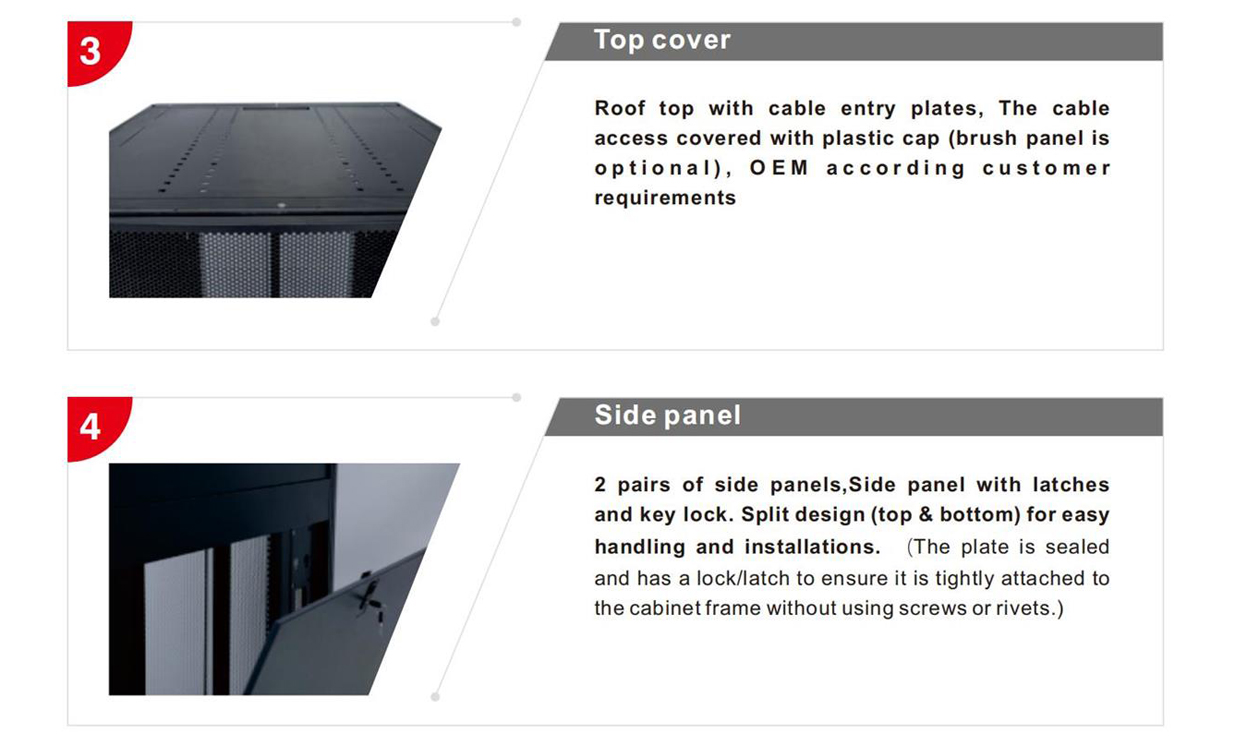

3. Roof top with cable entry plates, The cable access covered with plastic cap(brush panel is optional),OEM according customer requirements.
4. 1500KG-2000KG loading capacity
5. 2 pairs of side panels,Side panel with latches and key lock. Split design (top & bottom) for easy handling and installations.

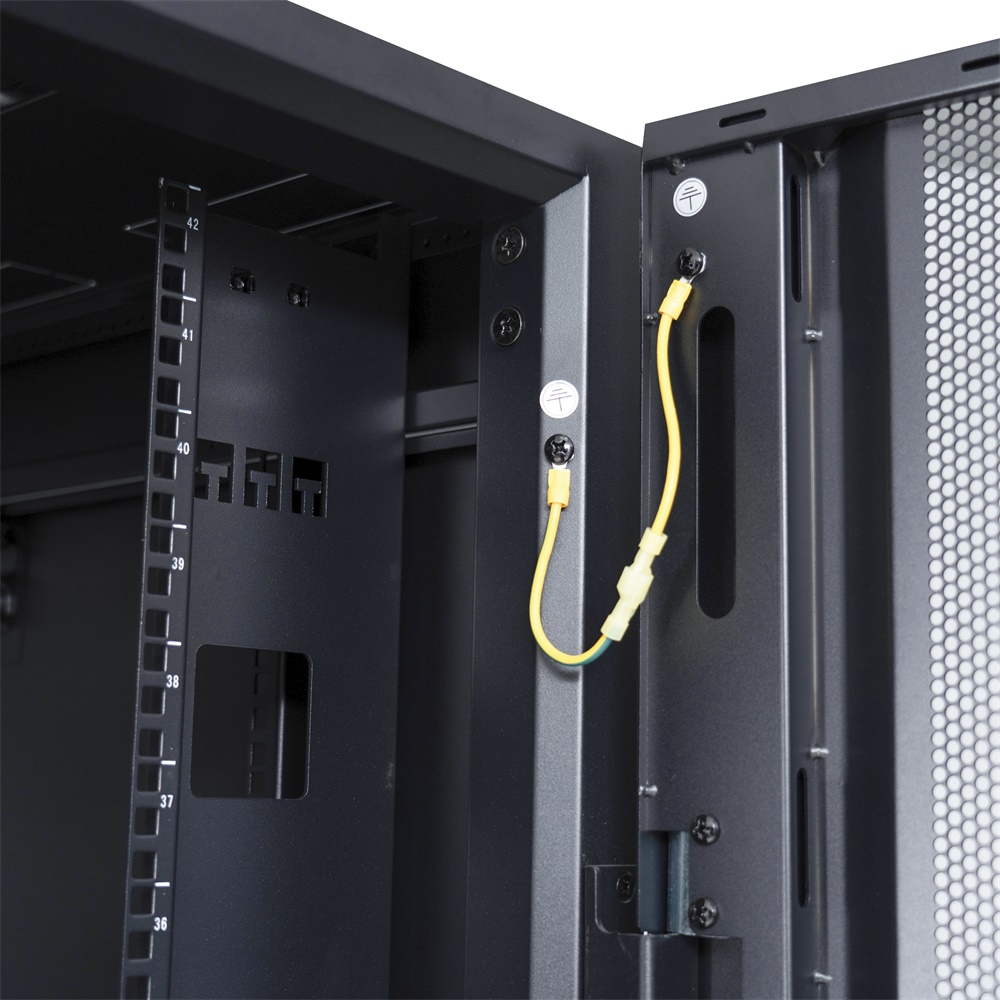

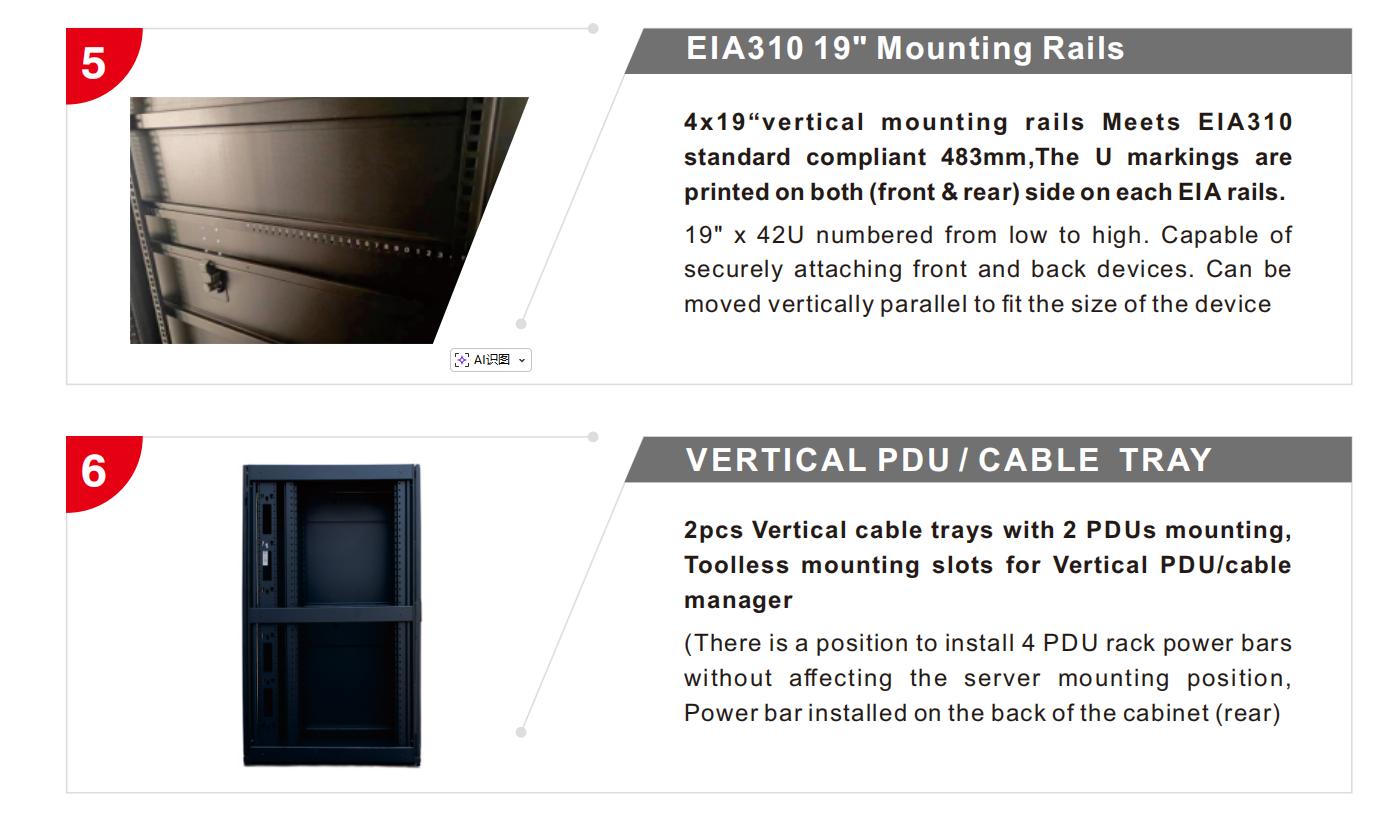

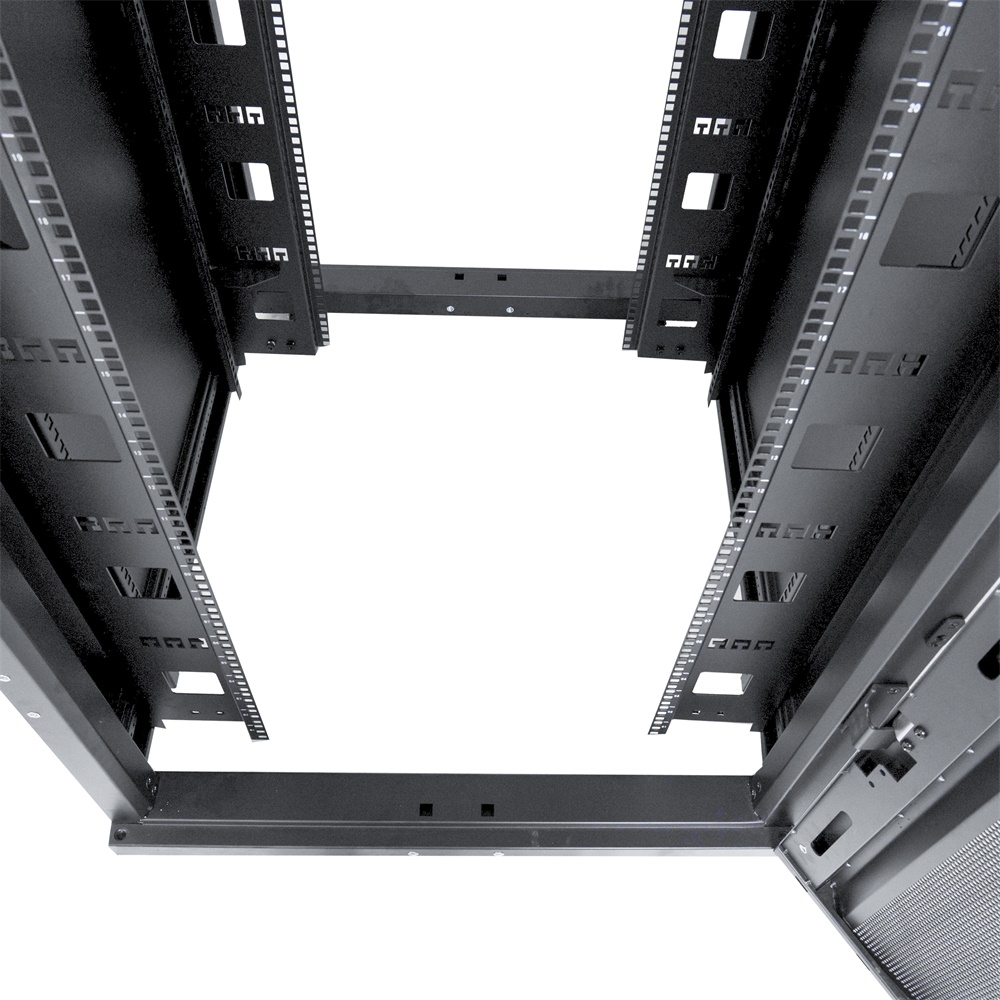

6. 4 x (19”) vertical mounting rails Meets EIA310 standard compliant 483mm,The U markings are printed on both (front & rear) side on each EIA rails.
7. Adjustable leveling feets and Heavy duty caster

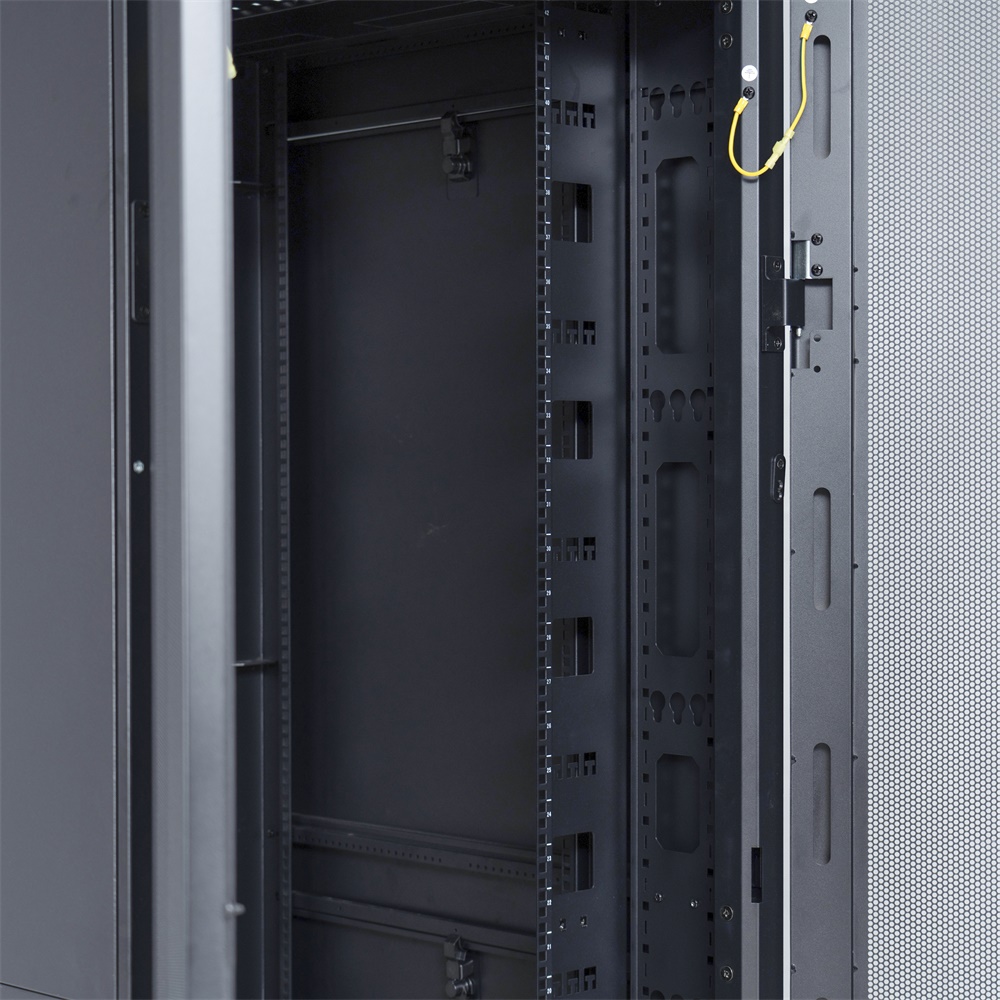

8. 2pcs vertical cable tray- Toolless mounting slots for Vertical PDU/cable manager mounting.

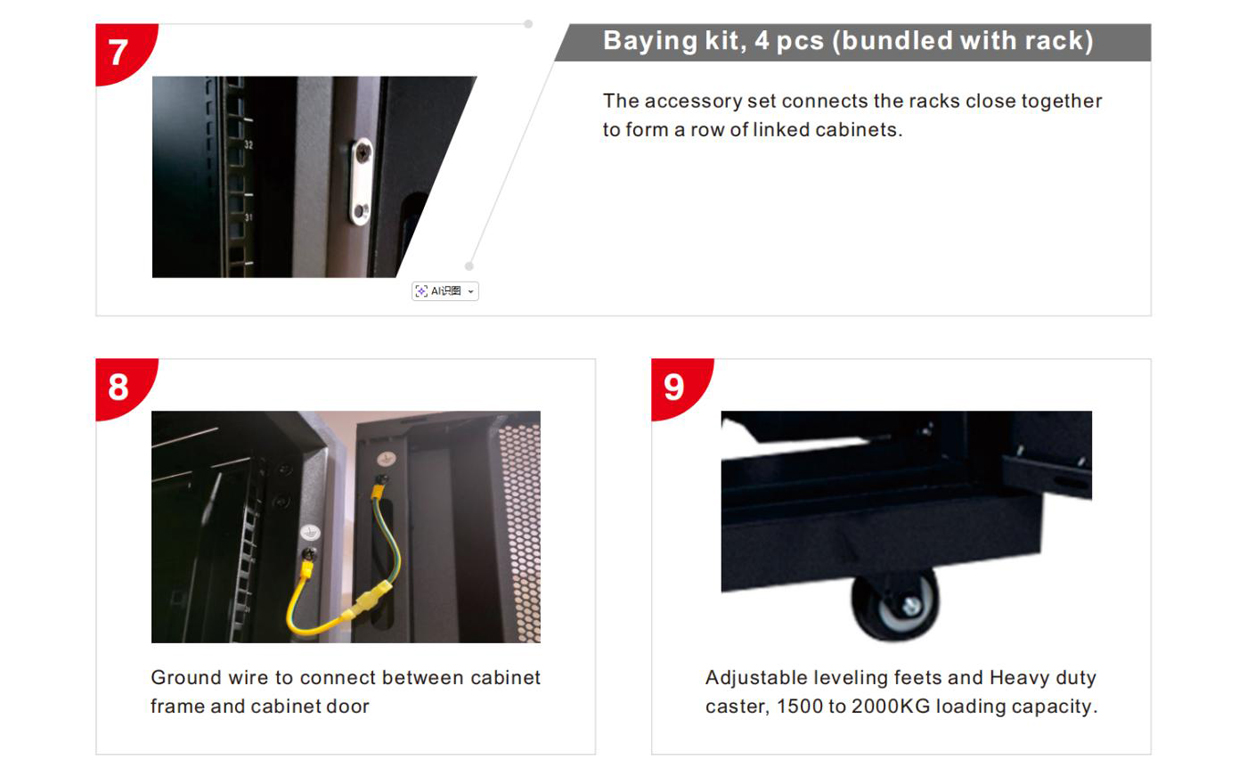

9. Baying kit, 4 pcs (bundled with rack)
10. 50 sets of captive M6 nuts and M6 screws
11. Bottom plate (optional cover)
12. Rack base is optional (There is a base to ensure the load and be placed firmly on the raised floor)
Detail Display
 |  |  |
 |  |  |
