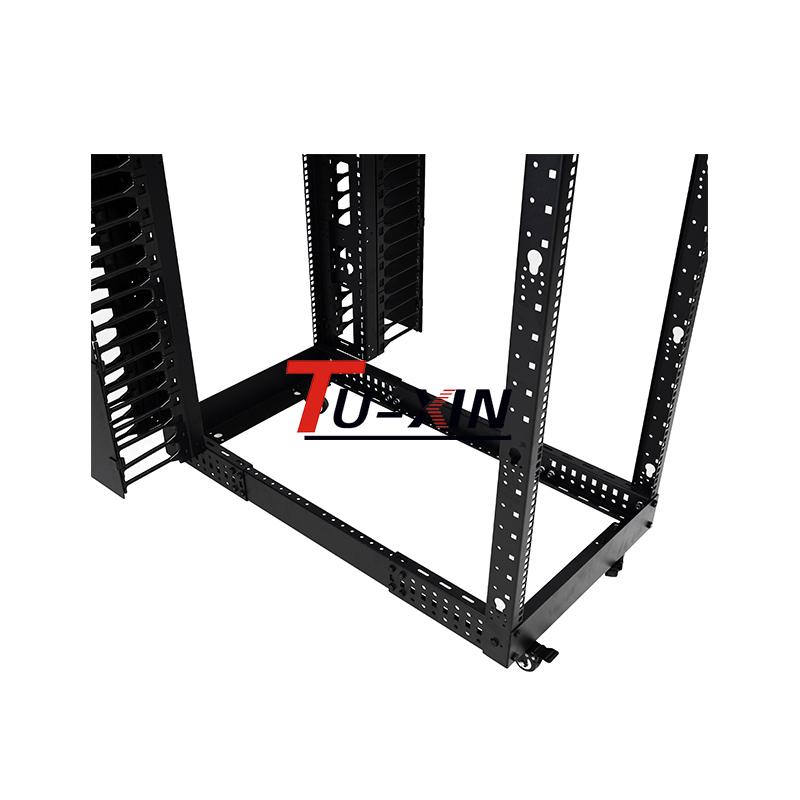

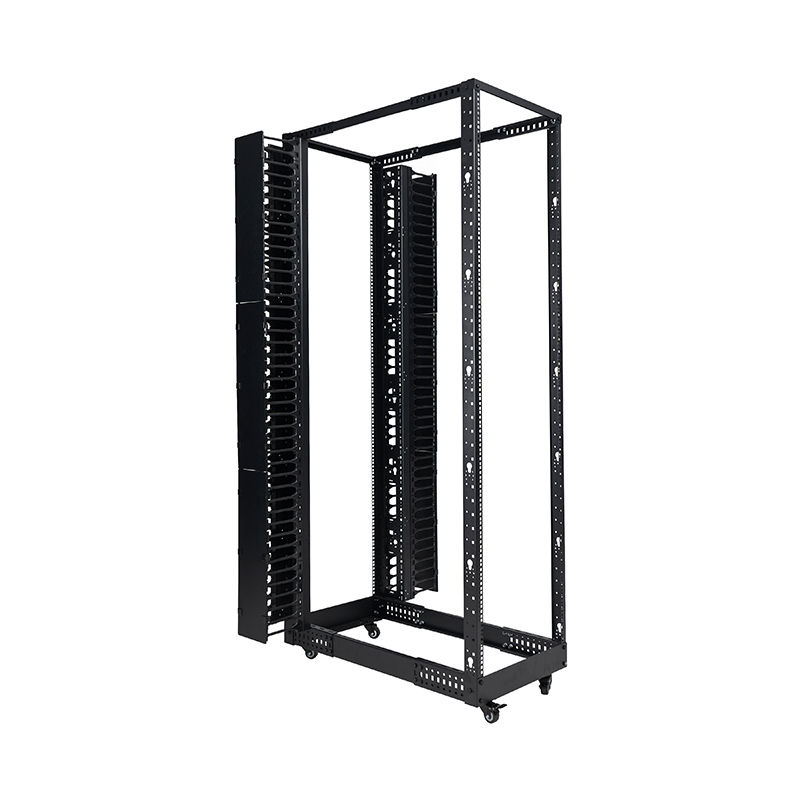

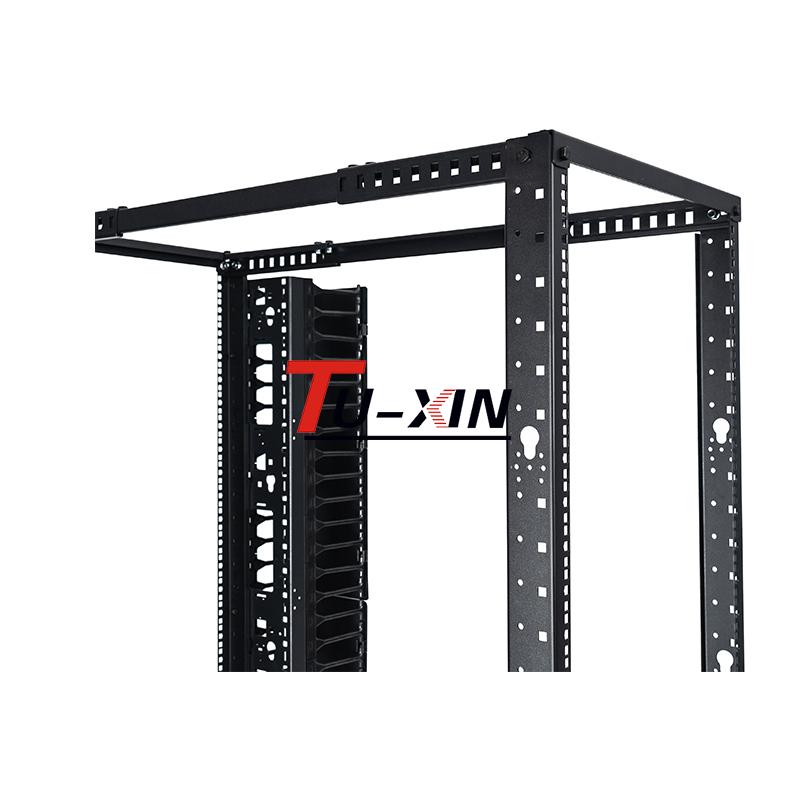

42U Adjustable 4-Post Open Frame Server Racks with Vertical Cable Manager

T-OR Post Racks offers a sturdy and low-cost solution, Designed with adjustable mounting depth, the racks allow users to adjust mounting depth based on their requirements in demanding IT environments, satisfying different installation needs.

Features:
  • Compatible with 19″ IT equipments.
  • Adjustable mounting depth from 558 mm to 1023 mm
  • The open design provides easy access to equipment and cabling.
  • Modular design, easily assemble and disassemble for delivery, low-cost.
  • Static loading capacity: 450KG-900KG
  • Floor mounting holes on the base to secure the stability to the floor
  • With High Cabling Capacity and convenient toolless button-hole mounting for vertical PDUs and cable managers.
  • With leveling feet to enhance stability, the rack enclosure can be fixed firmly on the ground when casters are installed, bringing convenience for users.
  • With caster kit to enhance mobility, the racks allow users to move the racks around easily and to roll them into the desired location, bringing convenience for users.
  • Can be ganged with both 2- and 4-Post Open Frame racks
  • Main materials: SPCC (cold-rolled steel)
Availability:
Quantity:
Inquire Add to Basket

TECHNICAL SPECIFICATIONS
STANDARDDIN41491, DIN41494, EIA/ECA-310-E, IEC 294-2, ROHS
MATERIAL

SPCC COLD ROLLED STEEL

BASE PLATE: 3MM, OTHERS:2.0MM

LOADING CAPACITY450KG-900KG
IP DEGREEIP20
SHIPPING OPTION:FLAT PACKED
CAPACITY18U-48U
WIDTH600MM
OUTTER DEPTH600~1100
INNER DEPTH558.8~1023
CERTIFICATESCE ROHS
WARRANTY3 YEARS
LEADING TIME25 TO 30DAYS
