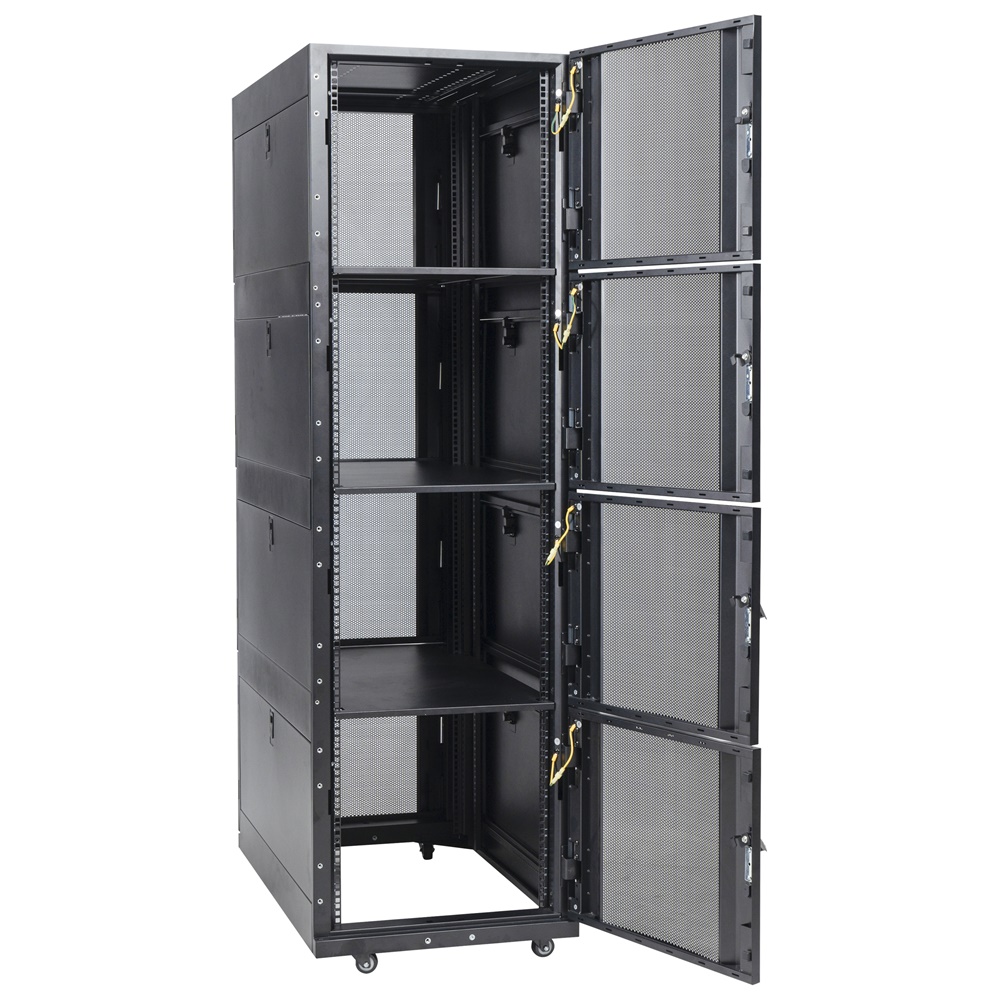

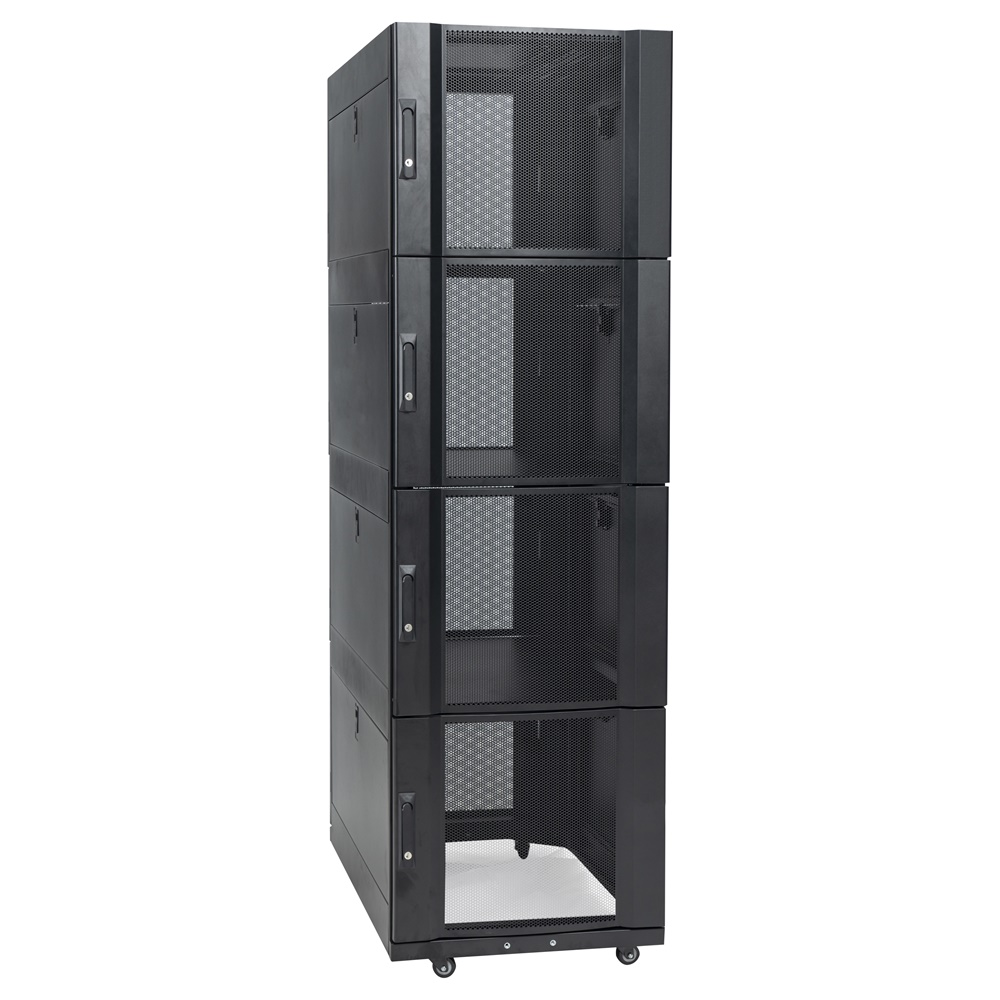

42U colocation server rack are separated in up to four compartiments, it splits a rack up among different customers while still allowing each customer to keep their equipment secure.
It is designed for tenants to share a single rack and maximize the space utilization in data center, computer room or network environment.
Feature

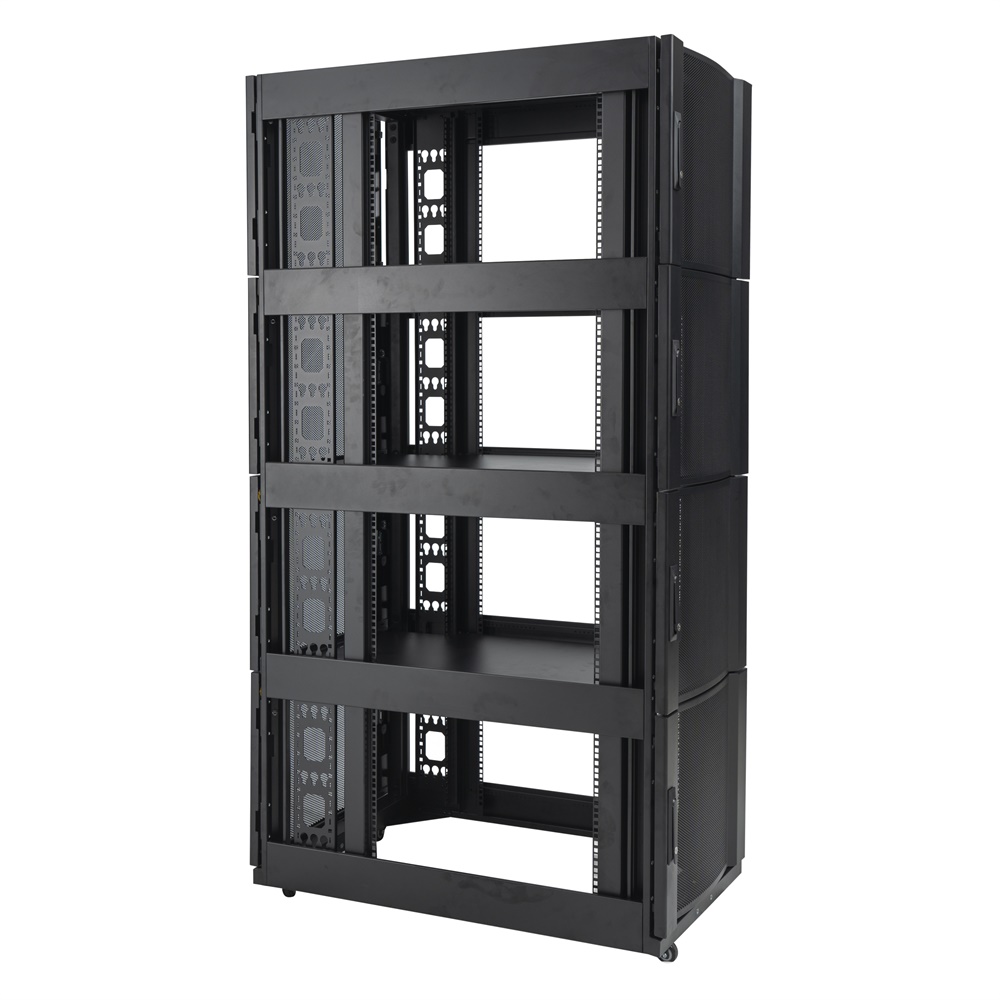

1. Divided into four compartment configuration. Two or three separated space are also optional.
2. Two or four sections can be locked for front door and rear door independently with a customer designated combination.
3. Perforated front and rear doors provide 78% high perforation rating
4. Divided side panels with single key lock.

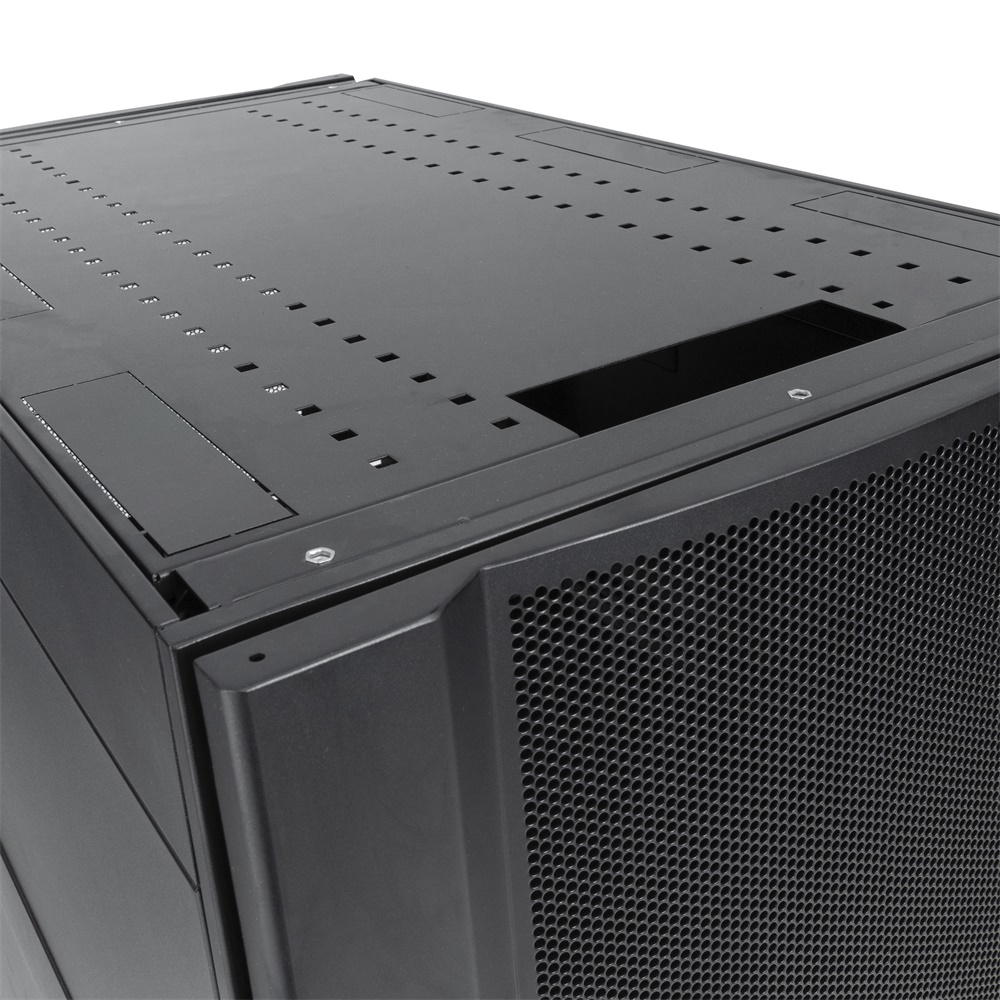

5. Roof top with cable entry plates, The cable access covered with plastic cap(brush panel is optional),OEM according customer requirements.
6. 1500KG loading capacity

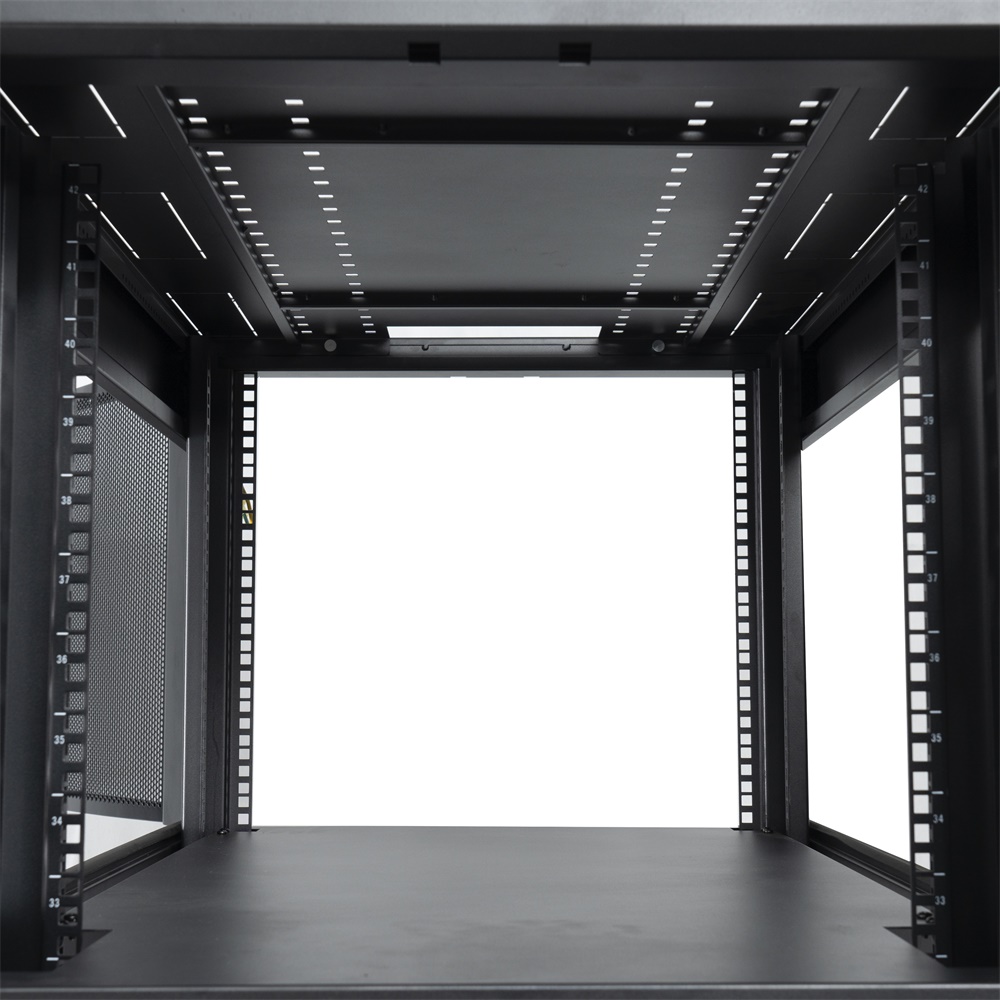

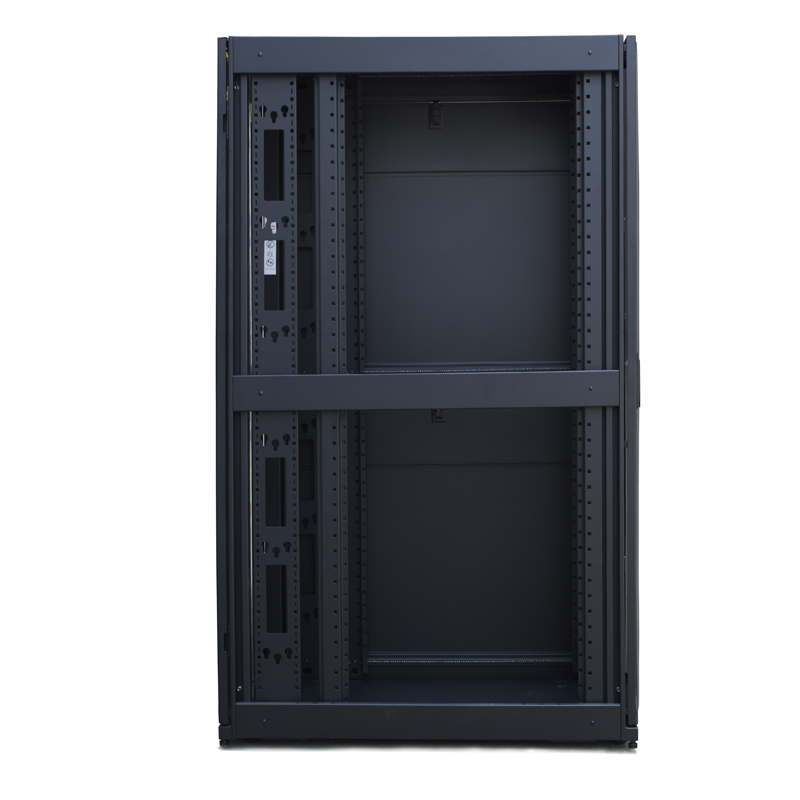

7. 4 x (19”) vertical mounting rails Meets EIA310 standard compliant 483mm,The U markings are printed on both (front & rear) side on each EIA rails.

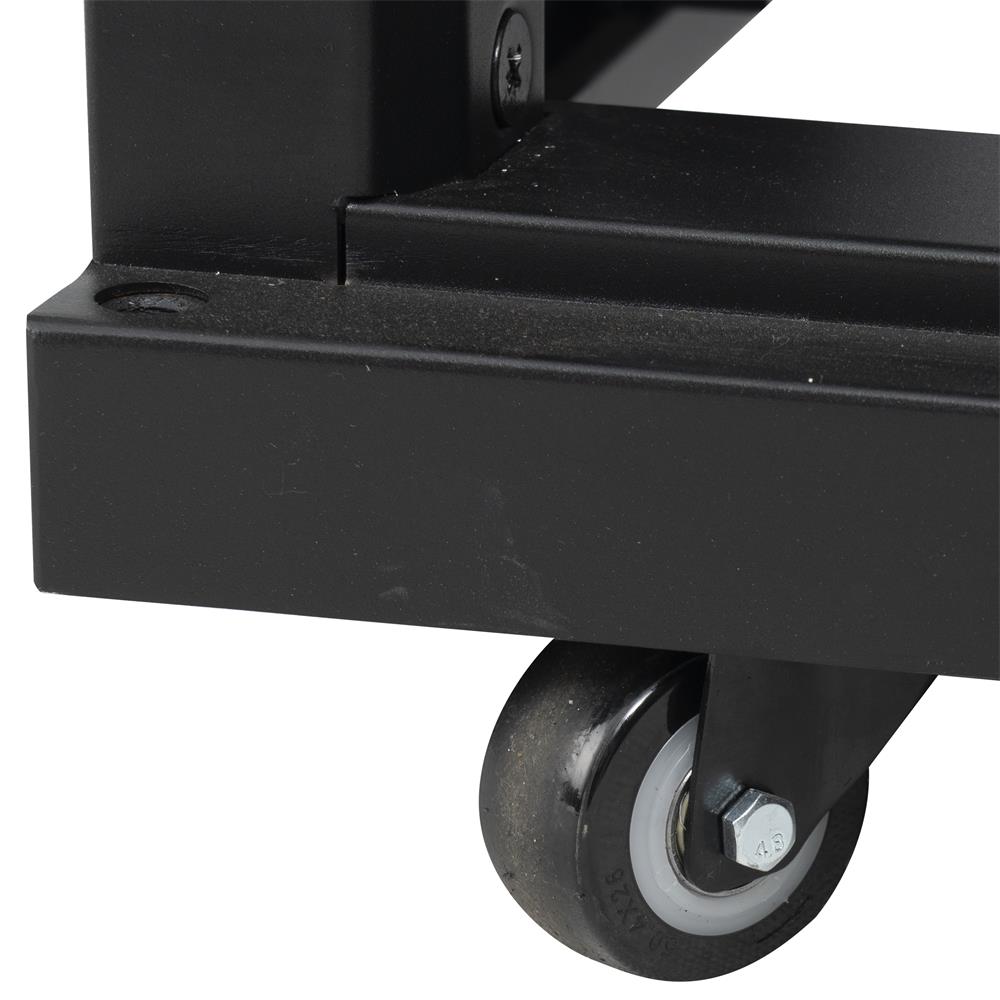

8. Adjustable leveling feets and Heavy duty caster

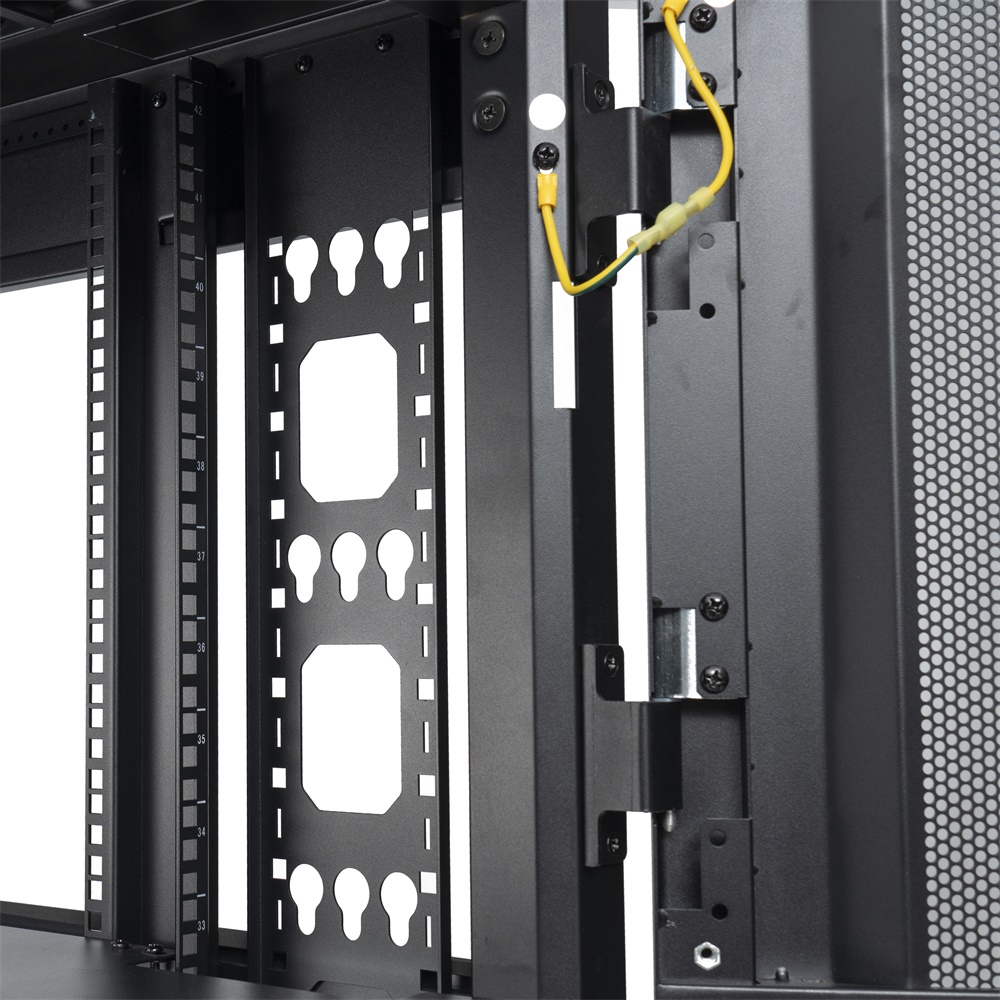

9. 2 x Vertical PDU / cable management tray ready for dual PDU mounting
8.Baying kit, 4 pcs (bundled with rack)
9.50 sets of captive M6 nuts and M6 screws

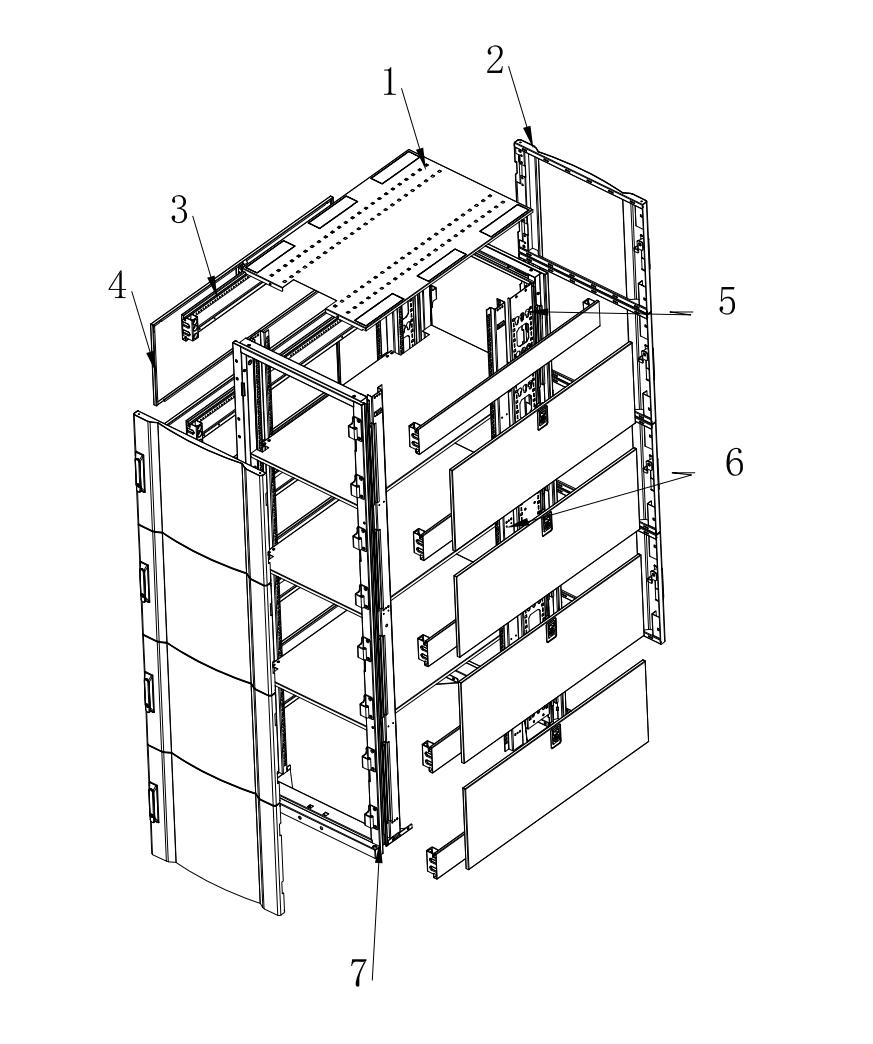

Colo Rack Drawing
| 1. Top cover 2. Divided Arc door 3. Cross beam 4. Side panel 5. cable tray 6. Mounting profile 7. Front frame |
