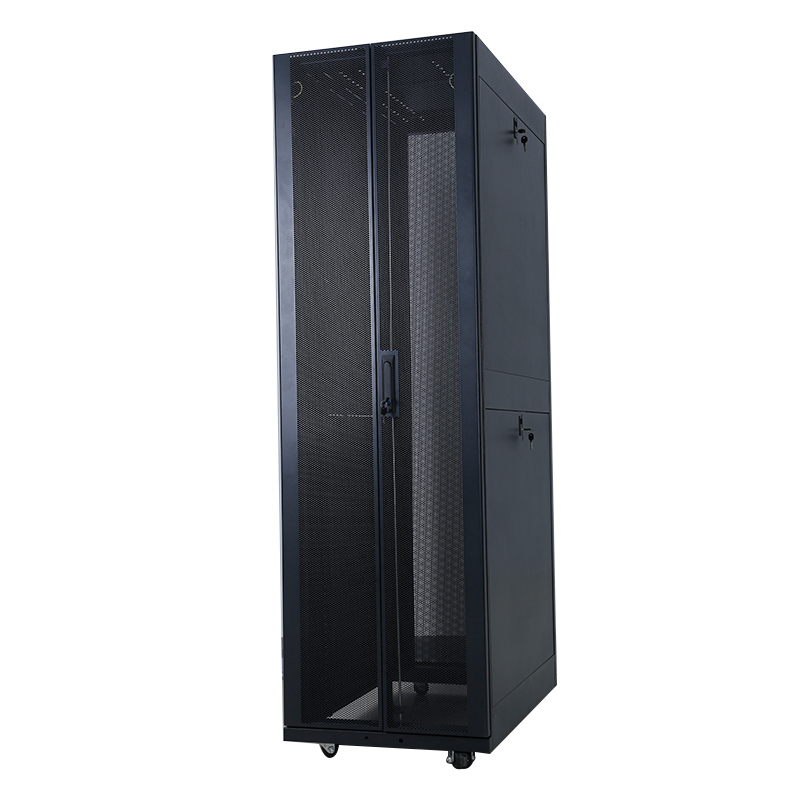

T-SC01 Series 19 Inch 42U Data Center Server Rack 1500KG Loading Capacity

Tuxin’s 42U server rack with 1500-2000kg loading capacity, it’s often used in large data centers , providing additional cable tray at the rear for cable management and 78% ventilation rate front-to-rear airflow solutions.

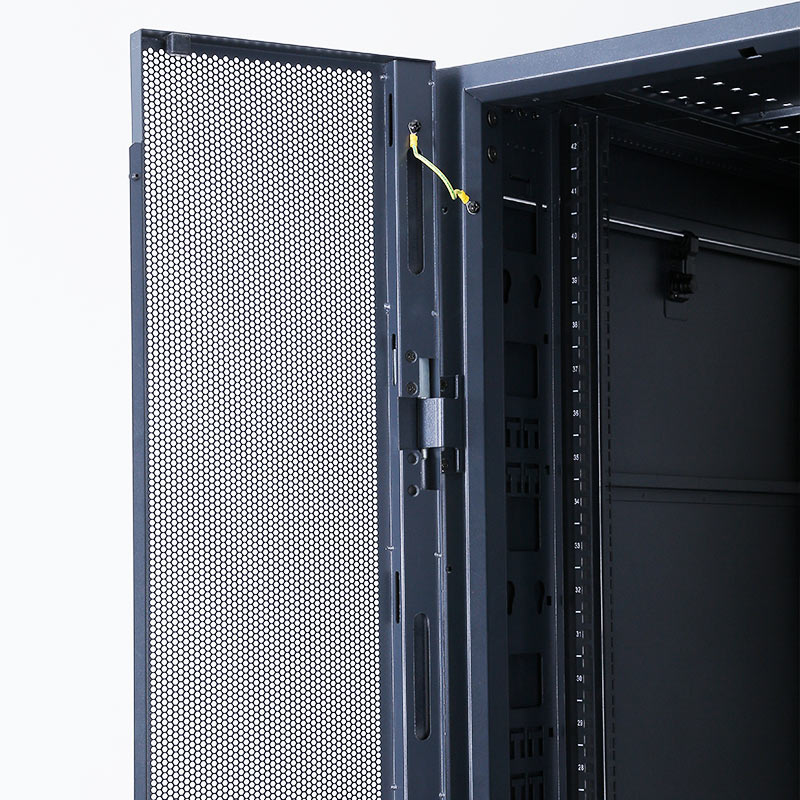

  • Single flat mesh front door with hexagonal hole with 78% ventilation rate
  • Split flat mesh rear door with hexagonal hole with 78% ventilation rate
  • Roof top with cable entry plates, The cable access covered with plastic cap(brush panel is optional),OEM according customer requirements.
  • 1500KG-2000KG loading capacity

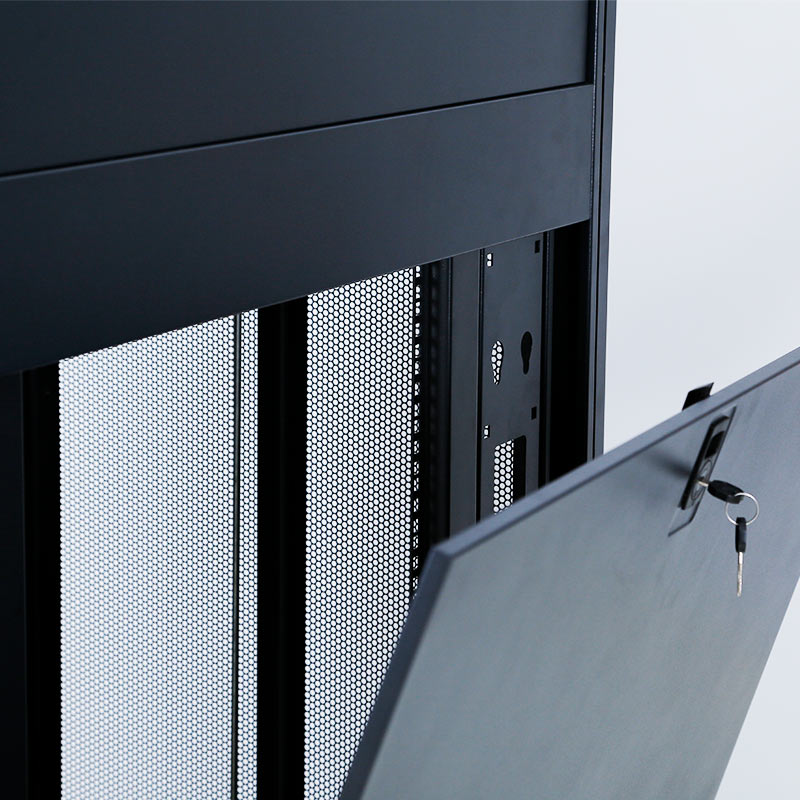

  • 2 pairs of side panels,Side panel with latches and key lock. Split design (top & bottom) for easy handling and installations.

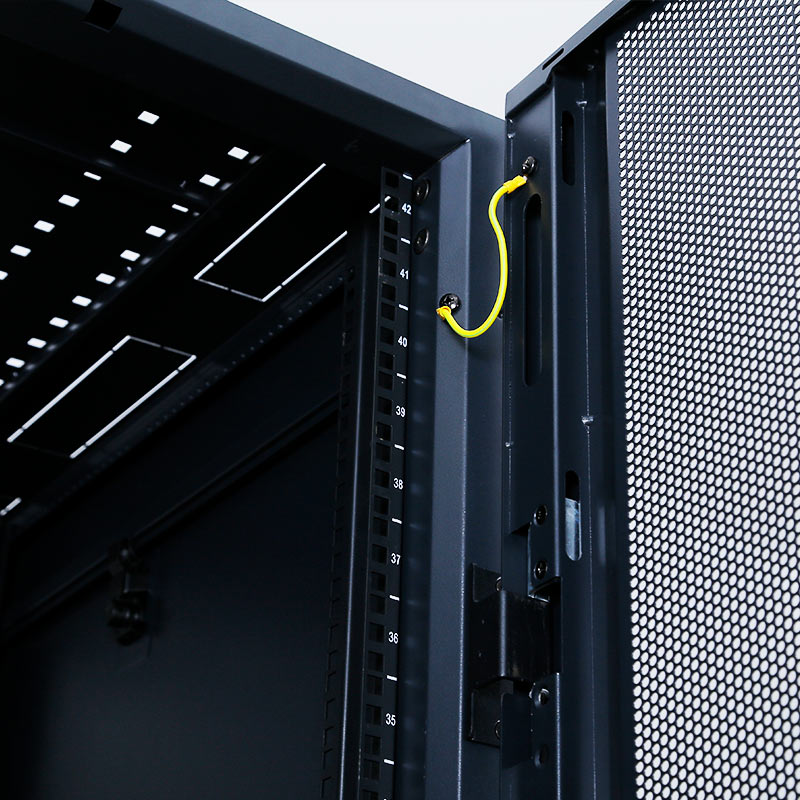

  • 4 x (19”) vertical mounting rails Meets EIA310 standard compliant 483mm,The U markings are printed on both (front & rear) side on each EIA rails.
  • Adjustable leveling feets and Heavy duty caster
  • 2 x Vertical PDU / cable management tray ready for dual PDU mounting
  • Baying kit, 4 pcs (bundled with rack)
  • 50 sets of captive M6 nuts and M6 screws
  • Bottom plate (optional cover)
Availability:
Quantity:
Inquire Add to Basket

TECHNICAL SPECIFICATIONS
STANDARDDIN41491, DIN41494, EIA/ECA-310-E, IEC 294-2, ROHS
MATERIALSPCC COLD ROLLED STEEL
LOADING CAPACITY1500-2000KG
IP DEGREEIP20
SHIPPING OPTION:ASSEMBLY UNIT OR FLAT PACKED
CAPACITY15U-52U
WIDTH600,800, 750
DEPTH6,008,001,000,107,010,000,000
CERTIFICATESCE ROHS
WARRANTY3 YEARS
LEADING TIME25 TO 30DAYS
